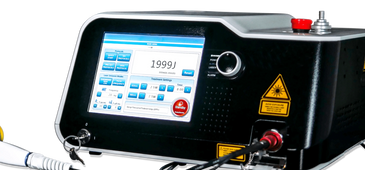

The Velas II Medical Diode Laser

The VELAS II Series Laser features advanced laser technology and delivers more energy than other therapy lasers (up to 60Watts for one individual wavelength).

-- Priced at under $20,000 --

Most laser resellers charge anywhere from $30,000 to $50,000 for this laser - we do not.

Maximum power, coupled with optimal wavelengths results in deeper penetration, significantly faster treatment times, and delivery of maximum therapeutic dosage in the shortest time. These features provide healthcare professionals an enhanced and superior ability to treat the most difficult conditions, and ultimately provide better clinical outcomes to all patients.

The VELAS II Laser System is available in the following configurations:

Single Wave 30W, 45W, or 60W

Dual-Wave 30Watt (15W per wavelength), Dual Wave 60W (30W per wavelength)

Tri-Wave 45Watt (15Watts per wavelength)

-- 810nm Wavelength --

The 810nm wavelength allows rapid activation of the hemoglobin oxygenation process: transferring enhanced light energy to muscles and tendons, facilitating tissue regeneration. Clinical studies indicate that 810nm stimulates mitochondrial cytochrome C oxidase by increasing cytosolic calcium while decreasing mitochondrial calcium.

-- 980nm Wavelength --

The 980nm wavelength optimizes action on thermal and mechanical receptors for a rapid analgesic effect, resulting in improved pain control, circulation, and muscle relaxation. Clinical studies indicate that 980nm primarily affects temperature-gated calcium ion channels.

-- 1064nm WAVELENGTH --

Photomedicine at 1064nm penetrates more deeply into denser tissues than either the 810nm or 980nm wavelengths, meaning metabolic processes deeper in the body are stimulated more readily by this wavelength. Since skin cells contain most of the body's melanin, and the 1064nm wavelength is especially absorbed by melanin, tissue stimulation occurs more readily with this wavelength; mitochondria is more highly populated in epithelial cells than any other cell type; the 1064nm wavelength is an especially effective way to stimulate mitochondria.

-- The Widest Range of Available Treatment Options --

Uniquely featuring the broadest laser power range of 1 to 60 watts of therapeutic output, the VELAS II provides the power to expand treatment options, resulting in optimal dosage levels administered. Delivering maximum optimal dosages of healing therapeutic energy is a key to clinical success and has been shown to be a major factor in achieving reliable and positive therapeutic outcomes. Incorporating a large color touchscreen with easy-to-use graphical user interface, the VELAS II Laser will function at maximum power all day, every day, regardless of patient condition or treatment needed. The versatility and power of the VELAS II Laser makes it the primary laser of hundreds of medical practices of all types.

• Starting at under $20,000
• Most laser resellers charge anywhere from $30,000 to $50,000 of the VELAS II
• Complete packages as shown
• Multi-Year Manufacturer's warranty included
• Custom Laser Carts Available

Approved for use in the following medical disciplines:

THERAPY

SURGICAL

DENTISTRY

EVLA

PLDD

ENT

DERMATOLOGICAL

AESTHETIC

Laser Lipolysis

Gynecology

Benign Prostatic Hyperplasia

Laser lift

Spider vein removal laser

808nm hair removal laser system

Beauty-Scan 1550nm

The Most Robust Therapy Laser Ever Designed

With over a decade in use and thousands of units sold, there never has been, nor will there ever be a more dependable or more widely-used medical laser than the VELAS II. To say that a device like the VELAS II is underutilized as a therapy laser - is an understatement.  The VELAS series offers  a multiple choice for different clinical requirements. Surgical applications require a technology that offers equally effective ablation and coagulation options. VELAS series offers the wavelength options of 810nm, 940nm, 980nm, 1210nm, 1470nm and 1940nm, with CW, single pulse and pulsed mode.
With different accessories such as flexile fiber, handpieces with various shapes and lengths, micro-endoscope etc., VELAS offers the versatility to extend and develop many clinical applications. The VELSA II  laser is used in in dentistry, endovenous laser treatment (EVLT), ENT, PLDD, liposuction, DEEP Tissue Therapy , veterinary and so on. The VELAS laser system have approved CE mark , FDA and ISO13485.

 VELAS is the most stable system ever produced, with advanced and proven techniques, high quality, and optimal performance.

  VELAS Features:

User-friendly interface

Quick startup operation mode on the interface

Easily set every parameter on interface

Output power calibration at the end of fibers

High quality and reliability

Big color touch screen

Highly integrated and modular design

New design inside to make maintenance easy and low-cost

Full accessories for every clinical need

Reliable after-sale service and training

Specifications

Laser Type: GaAlAs Diode Laser

Model: VELAS (More wavelength models please contact your sales)

Wavelength: 810nm, 1210nm, 532nm, 1064nm, 980 +1470nm

940nm 1470nm, 980nm, 1940nm

Maximum Power: 30W /60W; 5W-15W; 4W/8W; 10W/30W; 30W/45W

Operation Mode: CW, Single Or Repeat Pulse

Pulse Duration: 10μs-3s /10ms-3s; 10μs-3s

Repetition Rate: 0.2Hz-50KHz /0.2Hz-50Hz; 0.2Hz-50KHz

Transmission System: Fibers Of 200um ,400um, 600um, with SMA905 Connector

Pilot Beam: Red Diode Laser Of 635nm, Power<5mW

Control Mode: True Color Touch Screen

Voltage/Current Rating 110/220 VAC, 5A , 50/60 Hz

Dimensions: 400(W)*385(L)*200(H) mm

Weight: 13Kg

Safety Compliance: CE0197/FDA
