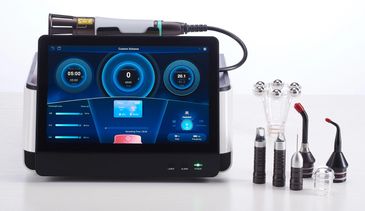

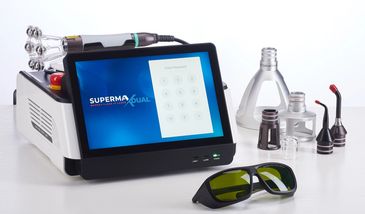

Medray Supermax 45Watt Quad-Wave Medical Laser

45.3Watts Total Output

300mW at 650nm plus 810nm/910nm/1064nm

at 15Watts per wavelength

Hands-free System, Laser Cart,

5-Year Manufacturer’s Warranty

-- Price Comparison --

Priced under $17,000, the Supermax Laser is identical to other lasers costing up to $50,000.

As medical lasers evolve, they should reflect the following:

New technology means lower prices

More available features

The 'evolved' product should be built to higher standards than previous models, which should be reflected in:

A better and longer warranty!

-- Features Comparison --

The Supermax laser offers the widest range of USEFUL features of any therapy laser available, such as the most user-friendly GUI (graphical user interface), on-screen duty cycle adjustment, most complete library of scientifically-proven multi-phasic treatment protocols, the ability to save ALL patient records, available hands-free modality, and more.

-- Standards Comparison --

The highest standards in the industry are built into the Supermax Laser, including the following:

• robust chassis;
• maximum efficiency multi-channel cooling system;
• Four wavelengths for maximum tissue interactions;
• Most effective and ergonomic handpiece options;
• Most intuitive graphical user interface;
• Simple to operate multi-phasic treatment protocols
• and so much more.

-- Warranty Comparison --

When comparing the features of all FDA-cleared lasers manufactured by a major manufacturer and sold by a major distributor, one laser stands out as offering the best features at the best price – the Medray Supermax™.

A truly unique and superlative medical instrument!

650nM at 300mWatts (maximum safe power for this wavelength);

810nm at 15Watts per wavelength;

910nm at 15Watts per wavelength;

980nm at  15Watts per wavelength;

Total 45Watts, which is maximum allowable power for most patients.

-- THE 650nm WAVELENGTH --

The 650nm wavelength, besides being used as an aiming in the visible range, serves a dual purpose by offering laser energy in the class 3B range, thereby stimulating the effects of photomedicine. 650nm is best absorbed by the skin and acts to enhance the effects of the other wavelengths. In addition, this wavelength transfers a great deal of heat energy to targeted tissues, this being therapeutic in and of itself. Additionally, as endothelial cells are found in abundance in melanin (which readily absorbs the 650nm wavelength), and, since skin is a major part of the endocrine system, the 650nm wavelength is very beneficial in photomedicine (laser) therapy.

-- THE 810nm WAVELENGTH --

The conversion of ATP through molecular oxygen has the highest saturation using the 810nm wavelength. The 810nm wavelength stimulates red blood cells to transport oxygen more effectively from the lungs to cells throughout the body, improving the delivery of oxygen molecules to where they are most needed. This wavelength will help regenerate damaged muscle, collagenous, connective, bone, and other tissue types. In the metabolic process, specific proteins including hemoglobin binds to oxygen; the 810nm wavelength enhances rapid activation of the binding process, stimulating more rapid cellular recovery and tissue healing.

-- THE 915nm WAVELENGTH --

The 915nm wavelength is ideally suited to absorption by fluid in the tissues; What this means is enhanced reduction of inflammatory conditions come on reduction of pain due to the reduction of the inflammatory process, enhanced wound healing, and enhanced oxygenation of tissues throughout the body. Oxygen is life; the 915nm wave allows faster oxygen discharge into the bloodstream, increasing cellular food loads and stimulating increased healing capabilities. Hemoglobin assimilation is best accomplished by the 915nm wavelength; for any engine to properly function it needs fuel; the 915nm wavelength provides that fuel and the photomedicine processes ensures the fuel is released and delivered.

-- THE 1064nm WAVELENGTH --

Photomedicine at 1064nm penetrates more deeply into denser tissues than either the 810nm, 915nm, or 980nm wavelengths, meaning metabolic processes deeper in the body are stimulated more readily by this wavelength. Since skin cells contain most of the body's melanin, and the 1064nm wavelength is especially absorbed by melanin, tissue stimulation occurs more readily with this wavelength; mitochondria is more highly populated in epithelial cells than any other cell type; the 1064nm wavelength is an especially effective way to stimulate mitochondria.

Highest average power, highest peak power as high as 45Watts; means more conditions can be successfully treated, deeper penetration for additional energy power and volume, and shorter treatment times;

Output power up to 15Watts per wavelength on CW;

Four wavelengths for the widest range of tissue types;

Easily adjustable duty cycle, with Hz rates from 2 to 20,000Hz;

Variable frequencies according to modulation settings;

Output volume from 1% to 100%;

Frequency output time from 1 millisecond to 30 min.;

True super-pulsing at high energy levels, as opposed to

cold laser which yields average output power and volume below 100milliWatts (far too low to stimulate tissues);

Multiphasic treatment modalities;

Wi-Fi-enabled, Android operating system;

Multiple handpiece tips

-- Specifications --

Wavelength: 650nm+810nm+915nm+1064nm

Peak Power: 45W

Pilot Beam: Red LED 650nm±10nm, Power<5mW

Laser Type: GaA1As Diode

Laser Class: IV

Emission Modes: CW (continuous wave), Repeat pulse

Repetition rate 1 Hz- 20 KHz

Display: True color touch screen

Dimensions: 283(W), 275(L), 186(H) in millimeters

Weight: 7kg

Patient Stop Switch

Custom Laser Cart

Hands-Free Apparatus Included
